Kioskless Parking Operations &
Contactless Mobile Rails.
How Nexovex engineered a 100% hardware-free parking payment engine, dynamic vector QR signage router, Stripe Connect multi-party settlement rails, and real-time warden enforcement radar for ParkingBreeze.
The Capital & Friction Traps of Traditional Parking
Physical parking infrastructure is plagued by massive upfront capital expenditures, mechanical failure rates, driver app resistance, and error-prone manual enforcement.
Hardware Capital Drag & Mechanical Failure
Installing physical ticket kiosks, gate arms, cash vaults, and thermal receipt printers costs between $15,000 and $50,000 per parking lane. In addition to high capital expenditures, mechanical ticket jams, empty receipt rolls, power outages, and coin collection logistics create continuous operational drag and lost revenue.
Driver Friction & Mobile App Fatigue
Most digital parking apps require drivers to download a 90MB native mobile app from the App Store or Google Play, register an account, verify their email, and manually input 16-digit credit card details. Over 68% of drivers report intense frustration with single-use parking apps, resulting in non-compliance and abandoned parking sessions.
Multi-Tenant Settlement & Fund Custody
Commercial parking management requires operating hundreds of independent parking facilities—private garages, hotel valet lots, municipal street zones, and event arenas. Pooling all parking revenue into a central platform account creates severe regulatory money-transmitter liabilities and manual month-end reconciliation nightmares.
Enforcement Latency & Wrongful Citations
When parking attendants and enforcement wardens walk a lot, they need instantaneous confirmation of paid status. If database lookup latency exceeds 2 seconds or clock drift fails to account for grace periods, wardens issue wrongful parking citations to paying customers, causing customer fury and chargeback disputes.
Four Architectural Pillars of ParkingBreeze
Nexovex engineered a lightweight, high-speed digital parking operating system combining dynamic QR routing, Stripe Connect destination charges, and sub-50ms warden plate radar.

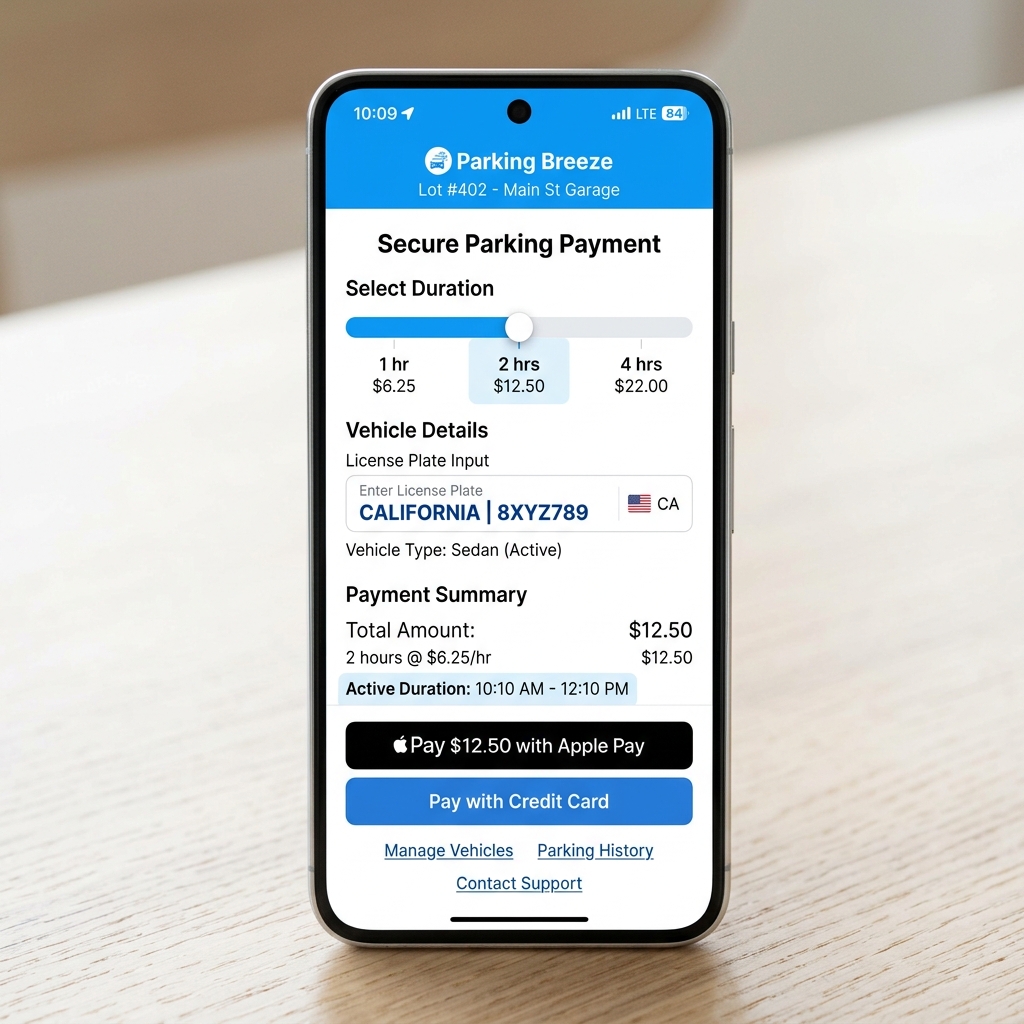

Sub-6s App-Free Mobile Web Checkout
We architected an ultra-lean mobile web experience at /park/{token}. When a driver scans a signboard QR code, our server renders an optimized 18KB HTML payload. There is zero app store redirection, zero password creation, and zero manual card input required.
- One-Tap Biometric Pay: Native Apple Pay and Google Pay sheet authorization completes in under 5.8 seconds.
- Local Plate Memory: Repeat drivers find their license plate number cached securely in browser storage.
- Instant Digital Receipt: Automatic SMS and email receipts containing session token and live countdown link.
ParkingController::scan($token) → initSession()Executes sub-200ms QR resolution and launches Stripe Elements checkout.
Stripe Connect Multi-Party Settlement Engine
We designed a non-custodial destination charge structure in app/StripeConnect.php. Gross parking charges route directly into connected parking operator bank accounts, while ParkingBreeze automatically captures its platform application fee at the exact millisecond of payment.
- Zero Custodial Liability: Operator revenue bypasses platform balance sheets, eliminating money-transmitter risk.
- Configurable Fee Engine: Supports flat fee ($0.30), percentage (2.0%), or hybrid splits configured per tenant billing plan.
-
Webhook Idempotency: Every webhook event records an idempotent hash in
webhook_eventsto prevent duplicate entries.
StripeConnect::createCheckoutSession(['app_fee_cents' => 36])Configures destination transfer and deducts platform software cut.
Dynamic Vector QR Signage Generator
We developed app/QRCode.php, an automated vector QR generation engine. Operators can generate lot-wide signboards or individual space-specific QR tokens. The system automatically creates print-ready, high-resolution HTML signage with tenant white-label branding.
- High Error-Correction: Uses Level H QR encoding to ensure readability even with 30% surface scratches or dirt.
-
Print-Ready Signage:
printableHtml()outputs calibrated CSS print templates for aluminum signage and stickers. - Scan Analytics Tracker: Records total optical scan counts per QR signboard to monitor lot ingress flow.
QRCode::generate($token, $label) → printableHtml()Generates branded 400x400 PNG and ready-to-print lot signage.
Real-Time Warden Radar & Expiry Countdown
In views/tenant/sessions.php, we engineered an enforcement dashboard for parking wardens. Wardens can search any license plate number with sub-50ms response times. Live sessions render dynamic JavaScript countdown timers with automated grace period handling.
- Instant Plate Search: Debounced real-time AJAX query matches partial plates against active lot records.
- Live Millisecond Timers: Synchronized client-side countdown clocks calculate exact remaining duration.
- Remote One-Tap Extension: Drivers receive SMS alert 15 mins before expiry to extend time from their phone.
syncTimers() · data-expires="0"Tracks real-time expiry and auto-transitions to 'Expired' status.
Interactive Transaction & Enforcement Flows
Select an operational pipeline below to explore how ParkingBreeze processes driver scans, routes multi-party payments, and syncs enforcement radar in real time.
/* Telemetry JSON will render here */The Four Horizons of Digital Parking Operations
From hardware kiosk elimination to 2027 autonomous vehicle in-dash payments, here is the architectural roadmap designed for ParkingBreeze.
Kioskless QR Checkout & Connect Rails
Elimination of physical payment hardware in favor of dynamic QR mobile web checkout and Stripe Connect marketplace rails.
- App-free mobile checkout (/park/{token})
- Stripe Connect destination charge fee engine
- Dynamic vector QR generator & signage HTML
- Warden live radar with plate search & timer sync
ANPR / ALPR Edge Cameras & Gate Relays
Optical number plate recognition integration via edge camera feeds and automated gate barrier triggers.
- Edge camera ALPR streaming & optical OCR
- MQTT / GPIO gate barrier opening relays
- Real-time garage occupancy visual heatmaps
- Automated ingress & egress plate pairing
Surge Pricing & Digital Monthly Hangtags
Dynamic algorithm-driven peak rate adjustments, EV charging session metering, and recurring residential permits.
- Dynamic surge pricing based on real-time demand
- EV charging kWh metering & unified billing
- Recurring monthly parking permits & passes
- Event pre-booking reservation engine
Autonomous Smart City Mobility Grid
In-dash vehicle payments via CarPlay/Android Auto, municipal curb management, and connected vehicle routing.
- Native CarPlay & Android Auto in-dash payment
- Municipal curb management API integrations
- Autonomous vehicle fleet docking & billing handshake
- Multi-operator smart city parking clearinghouse
Behind the Build · Operational Logic
Review the production PHP architecture powering ParkingBreeze's driver checkout, Stripe Connect destination charge router, vector QR engine, and live timer sync.
<?php
/**
* Parking Controller - Driver-Facing QR Scan & Session Lifecycle Engine
*/
class ParkingController {
/**
* POST: Initialize parking session and redirect to Stripe Checkout
*/
public function initSession(string $token): void {
if (!Auth::verifyCsrf()) {
flashError('Invalid request.');
redirect("/park/{$token}");
}
$qr = db()->fetch("SELECT qr.*, l.default_rate_cents, l.max_duration_hours, l.lot_capacity, l.name as location_name, s.rate_cents as spot_rate
FROM qr_codes qr JOIN locations l ON qr.location_id=l.id
LEFT JOIN spots s ON qr.spot_id=s.id
WHERE qr.token=? AND qr.is_active=1", [$token]);
if (!$qr) { view('parking/invalid'); return; }
$tenant = db()->fetch("SELECT t.*, bp.fee_model as bp_fee_model, bp.flat_fee_cents as bp_flat_fee, bp.percent_fee as bp_percent_fee
FROM tenants t LEFT JOIN billing_plans bp ON t.billing_plan_id=bp.id
WHERE t.id=? AND t.status='active'", [$qr['tenant_id']]);
if (!$tenant) { view('parking/unavailable'); return; }
$plate = strtoupper(sanitize(input('license_plate')));
$state = strtoupper(sanitize(input('license_plate_state')));
$phone = sanitize(input('driver_phone'));
$email = strtolower(trim(input('driver_email')));
$duration = (int)input('duration_minutes', 60);
$rate = $qr['spot_rate'] ?: $qr['default_rate_cents'];
// Validate Capacity Gate
if (empty($qr['spot_id']) && $qr['lot_capacity'] > 0) {
$activeCount = db()->count('parking_sessions', "location_id=? AND status='active'", [$qr['location_id']]);
if ($activeCount >= $qr['lot_capacity']) {
flashError('This location has reached maximum capacity. Please find another facility.');
redirect("/park/{$token}");
}
}
// Calculate Billable Amount & Dynamic Platform Split Fee
$baseAmount = (int)round($rate * ($duration / 60));
$feeModel = $tenant['bp_fee_model'] ?? 'both';
$feeFlat = (int)($tenant['bp_flat_fee'] ?? 30);
$feePct = (float)($tenant['bp_percent_fee'] ?? 2.0);
$appFee = match($feeModel) {
'flat' => $feeFlat,
'percent' => (int)round($baseAmount * $feePct / 100),
default => $feeFlat + (int)round($baseAmount * $feePct / 100),
};
$amountCents = $baseAmount + $appFee;
// Create Pending Session Record
$sessionToken = token(24);
db()->insert('parking_sessions', [
'tenant_id' => $qr['tenant_id'],
'location_id' => $qr['location_id'],
'spot_id' => $qr['spot_id'],
'qr_code_id' => $qr['id'],
'session_token' => $sessionToken,
'license_plate' => $plate,
'license_plate_state' => $state,
'driver_phone' => $phone,
'driver_email' => $email ?: null,
'duration_minutes' => $duration,
'rate_cents' => $rate,
'amount_cents' => $amountCents,
'platform_fee_cents' => $appFee,
'status' => 'pending',
]);
// Launch Stripe Connect Hosted Checkout with Apple/Google Pay
$checkoutUrl = StripeConnect::createCheckoutSession([
'amount_cents' => $amountCents,
'app_fee_cents' => $appFee,
'location_name' => $qr['location_name'],
'session_token' => $sessionToken,
'tenant_id' => $qr['tenant_id'],
'stripe_account_id' => $tenant['stripe_account_id'],
'customer_email' => $email ?: null,
'qr_token' => $token,
]);
redirect($checkoutUrl);
}
}<?php
/**
* ParkingBreeze - Stripe Connect Multi-Party Destination Payment Engine
*/
class StripeConnect {
public static function createCheckoutSession(array $opts): ?string {
self::init();
try {
$amount = (int)$opts['amount_cents'];
$appFee = (int)$opts['app_fee_cents'];
$params = [
'mode' => 'payment',
'line_items' => [[
'price_data' => [
'currency' => 'usd',
'unit_amount' => $amount,
'product_data' => [
'name' => $opts['description'] ?? 'Parking Session',
'description' => $opts['location_name'] ?? '',
],
],
'quantity' => 1,
]],
'success_url' => url('parking/success?session={CHECKOUT_SESSION_ID}&pb_session=' . ($opts['session_token'] ?? '')),
'cancel_url' => url('park/' . ($opts['qr_token'] ?? '')),
'metadata' => [
'parking_session_token' => $opts['session_token'] ?? '',
'tenant_id' => $opts['tenant_id'] ?? '',
'platform_fee_cents' => $appFee,
],
];
// Apply Stripe Connect Non-Custodial Destination Transfer
if (!empty($opts['stripe_account_id'])) {
$params['payment_intent_data'] = [
'application_fee_amount' => $appFee,
'transfer_data' => ['destination' => $opts['stripe_account_id']],
];
}
$session = \Stripe\Checkout\Session::create($params);
return $session->url;
} catch (\Exception $e) {
error_log('Stripe Checkout error: ' . $e->getMessage());
return null;
}
}
}<?php
/**
* ParkingBreeze - Dynamic High-Resolution Vector QR Code Engine
*/
class QRCode {
public static function generate(string $token, string $label = ''): string {
$url = url("park/{$token}");
$filename = "qr_{$token}.png";
$savePath = QRCODES_PATH . '/' . $filename;
$publicUrl = APP_URL . '/public/qrcodes/' . $filename;
if (!is_dir(QRCODES_PATH)) {
mkdir(QRCODES_PATH, 0755, true);
}
// Generate High Error-Correction (Level H) QR Code via Endroid
if (class_exists('\\Endroid\\QrCode\\QrCode')) {
$qrCode = \Endroid\QrCode\QrCode::create($url)
->setEncoding(new \Endroid\QrCode\Encoding\Encoding('UTF-8'))
->setErrorCorrectionLevel(\Endroid\QrCode\ErrorCorrectionLevel::High)
->setSize(400)
->setMargin(20)
->setForegroundColor(new \Endroid\QrCode\Color\Color(31, 58, 102))
->setBackgroundColor(new \Endroid\QrCode\Color\Color(255, 255, 255));
$writer = new \Endroid\QrCode\Writer\PngWriter();
$result = $writer->write($qrCode);
file_put_contents($savePath, $result->getString());
}
return $publicUrl;
}
/**
* Generate calibrated print-ready HTML signage template
*/
public static function printableHtml(array $qr, array $location, array $branding): string {
$label = e($qr['label'] ?: ($location['name'] . ' - Spot ' . ($qr['spot_number'] ?? '')));
$imgUrl = APP_URL . '/public/qrcodes/qr_' . $qr['token'] . '.png';
$parkUrl = url('park/' . $qr['token']);
$companyName = e($branding['company_name']);
$primary = e($branding['primary_color']);
return "<!DOCTYPE html><html><head>
<title>Signage - {$label}</title>
<style>
body { font-family: 'Inter', sans-serif; display: flex; align-items: center; justify-content: center; min-height: 100vh; }
.card { text-align: center; padding: 40px; border: 3px solid {$primary}; border-radius: 16px; width: 380px; }
.brand { font-size: 22px; font-weight: 800; color: {$primary}; margin-bottom: 8px; }
.qr img { width: 280px; height: 280px; border-radius: 8px; }
.instructions { margin-top: 20px; padding: 12px; background: #f0f5ff; border-radius: 8px; font-size: 13px; }
</style>
</head><body>
<div class='card'>
<div class='brand'>{$companyName}</div>
<div class='label'>{$label}</div>
<div class='qr'><img src='{$imgUrl}' alt='QR Code'></div>
<div class='instructions'><strong>Scan with Phone Camera</strong><br>Pay via Apple Pay / Google Pay</div>
</div>
</body></html>";
}
}<!-- Real-Time Enforcement Radar & Client-Side Millisecond Timer Synchronization -->
<script>
(function(){
var syncTimers = function() {
var now = Date.now();
document.querySelectorAll('.admin-live-timer').forEach(function(el) {
var expires = parseInt(el.getAttribute('data-expires'), 10);
var ms = expires - now;
if (ms <= 0) {
el.textContent = 'Expired';
el.style.color = '#ef4444';
el.classList.remove('admin-live-timer');
return;
}
var totalSec = Math.floor(ms / 1000);
var hours = Math.floor(totalSec / 3600);
var minutes = Math.floor((totalSec % 3600) / 60);
var seconds = totalSec % 60;
var str = '';
if (hours > 0) str += hours + 'h ';
str += (minutes < 10 ? '0' : '') + minutes + 'm ';
str += (seconds < 10 ? '0' : '') + seconds + 's';
el.textContent = str;
if (totalSec < 600) {
el.style.color = '#f59e0b'; // Warning: Under 10 minutes
} else {
el.style.color = '#10b981'; // Healthy: Over 10 minutes
}
});
};
setInterval(syncTimers, 1000);
syncTimers();
// Instant Plate Lookup Debounce Handler
var searchInput = document.getElementById('liveSearchInput');
if (searchInput) {
var timeout = null;
searchInput.addEventListener('input', function() {
clearTimeout(timeout);
timeout = setTimeout(function() {
var query = searchInput.value.trim().toUpperCase();
document.querySelectorAll('#sessionsTableBody tr').forEach(function(row) {
var plate = row.querySelector('td strong')?.textContent || '';
if (!query || plate.includes(query)) {
row.style.display = '';
} else {
row.style.display = 'none';
}
});
}, 150);
});
}
})();
</script>Quantifiable Operational Performance
Measurable engineering achievements delivered across hardware capital elimination, mobile checkout speed, and enforcement radar accuracy.
“Nexovex completely revolutionized our parking operations. By eliminating physical kiosks in favor of dynamic QR mobile web checkout, our operators slashed setup costs by over $40,000 per facility. The seamless Stripe Connect payouts and real-time warden radar have made ParkingBreeze the gold standard in contactless parking technology.”
Build Scalable IoT & Contactless Platforms with Nexovex
Whether you are developing hardware-free payment solutions, multi-tenant marketplace platforms, or real-time operational feeds, our team delivers production software engineered for high-throughput reliability.
